I.C.T-U1
I.C.T
| Mennyiség: | |
|---|---|

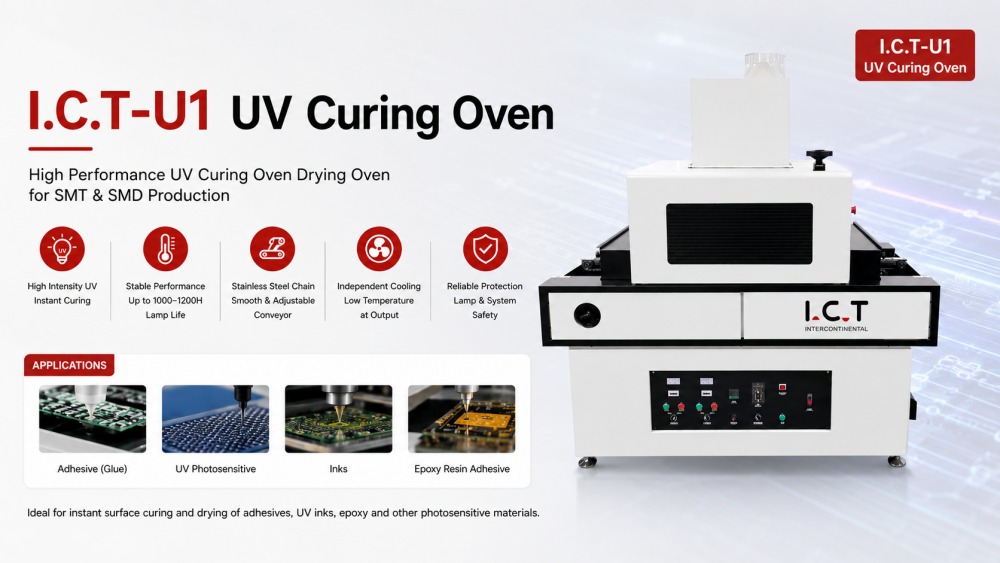

The I.C.T-U1 UV Curing Oven is designed for rapid and uniform curing of adhesives, inks, coatings, and photo-sensitive materials in SMT PCB production lines. The non-stick Teflon conveyor, combined with stepper motor control, ensures stable and smooth transport of boards. UV lamps deliver high-intensity energy, optimized by reflective panels, and can be independently adjusted for height. The oven supports a range of PCB sizes, maintains precise temperature, and includes a cooling zone to protect components after curing. This system improves throughput, reduces defects, and provides consistent results in high-volume SMT PCB production.

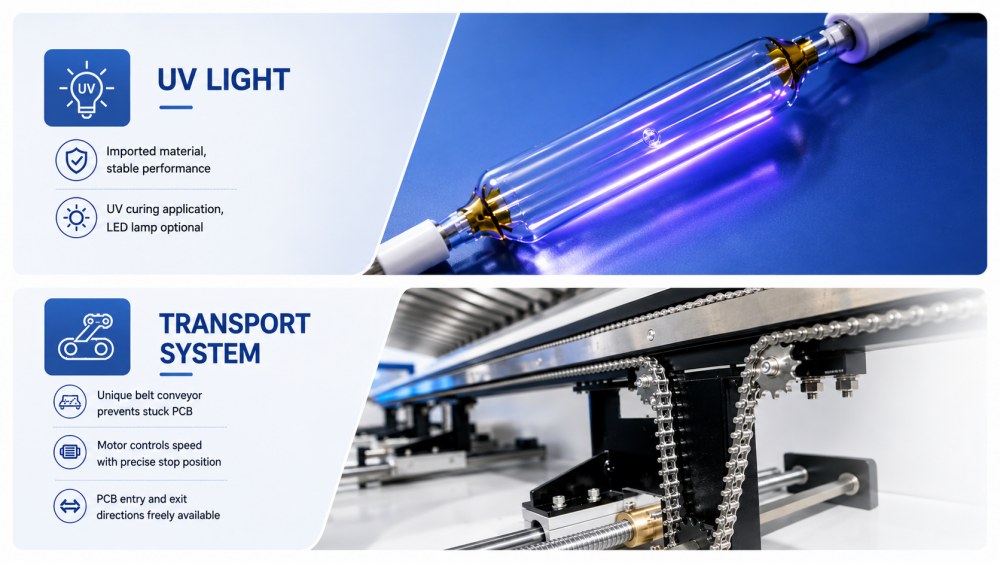

The UV lamps provide high-intensity, rapid-curing energy across multiple zones. Each lamp can be independently controlled for height and exposure time. Reflective surfaces improve energy utilization while minimizing power consumption. Safety features include over-temperature protection, abnormal lamp detection, and integrated alarms. The system ensures uniform curing for adhesives, coatings, and inks while protecting delicate PCB components. Operators can control intensity and exposure for different materials, supporting multiple SMT processes with consistent results and efficient energy usage.
The conveyor is made of non-stick Teflon, driven by a stepper motor with adjustable speed between 500–5000 mm/min. The buffer and push mechanism ensures precise positioning and smooth transport through the UV chamber. Fiber optic sensors detect board presence and alignment, preventing collisions and misfeeds. Vertical height and spacing accommodate boards up to ±100 mm in height and 500 mm in width. Independent cooling zones reduce PCB surface temperature after curing, minimizing thermal stress and maintaining board quality across high-throughput SMT production lines.
| Specifications:
| Specifications | I.C.T-U1 |
| Transport | Stainless steel chain |
| Control System | Instrument |
| Conveyor Speed | 500～5000mm/min |
| UV light quantity | 2set |
| UV light power | 5Kw/set |
| UV light source | UVA band |
| Main wave length | 365nm |
| UV light height adjustment | Adjustable |
| Max PCBA height | ±100mm |
| Max width of PCBA | 500mm |
| Electric supply | 3Phase, 380V 50/60Hz |
| Dimension (L*W*H) | 1800*970*1835mm |
| Weight | Approx.350KG |
* The data is obtained under the ambient temperature of 25℃ and humidity of 60%
* I.C.T keeps working on quality and performance, specifications and appearance may be updated without particular notice.
| PCBA Coating Line Equipment List
This UV Curing Oven integrates seamlessly with I.C.T’s full SMT coating and dispensing lines, including conformal coating machines, jet dispensers, PCB conveyors, AOI inspection, and depaneling equipment. The oven provides controlled curing while the coating machines protect board surfaces. Curing ovens complete material hardening, AOI verifies quality, and depaneling separates finished PCBs. Combining these devices ensures a smooth workflow, consistent quality, and reduced rework in high-volume SMT PCB assembly environments.
| Product Name | Purpose in PCBA Coating Line |
|---|---|
Applies precise protective coatings to circuit boards for dustproof, waterproof, and explosion-proof protection. | |
Hardens coatings with IR or UV light, ensuring durable and strong protection. | |
Transports circuit boards smoothly through the coating line for efficient processing. | |
Provides and stores PCB for the production line, ensuring smooth input and output. | |
| Conformal coating AOI | Inspects coating quality and detects defects to ensure high standards. |
| Customer Success Video
In April 2026, I.C.T delivered a full SMT line to a Portuguese automotive electronics manufacturer producing lighting and control system boards. Engineers conducted on-site installation, conveyor setup, and operator training. The team instructed staff on oven operation, cooling management, and daily maintenance. The customer praised the smooth installation, consistent oven performance, and clear, practical guidance. Operators were able to manage the line effectively, maintaining consistent curing quality across all PCB assemblies, from adhesives to coatings, throughout production.
| Service and Training Support
I.C.T provides service for the entire SMT factory, not just individual machines. Pre-delivery evaluation covers PCB type, material, production throughput, workspace, and future expansion. Post-delivery, engineers provide installation, commissioning, operator training, maintenance guidance, and process optimization. The team ensures seamless integration of UV curing with coating, dispensing, inspection, handling, and depaneling equipment. New factories are guided from layout planning to trial production. Existing lines receive workflow improvements, balanced line management, and stable operation, supporting high-volume and precise SMT PCB curing.
| What Our Customers Say
Customers value I.C.T for hands-on, practical support. In full SMT projects, engineers provide clear operation guidance, training, packaging protection, and prompt responses. Export packaging protects machines during long-distance delivery. Technical questions during installation or production are addressed immediately by coordinated sales and engineering teams. Customers gain confidence in launching new SMT lines, scaling production, and maintaining consistent, high-quality curing results across adhesives, inks, and coatings.
| Certifications and Standards
I.C.T maintains structured quality management for SMT factories. The UV Curing Oven is CE certified and meets international safety standards. Quality control includes component inspection, assembly verification, function testing, packing confirmation, shipment tracking, installation records, and after-sales service. These steps ensure repeatable, reliable curing performance, minimize operational risks, and maintain consistent quality for high-throughput SMT PCB production. The system guarantees stable curing across multiple board types and process materials.
